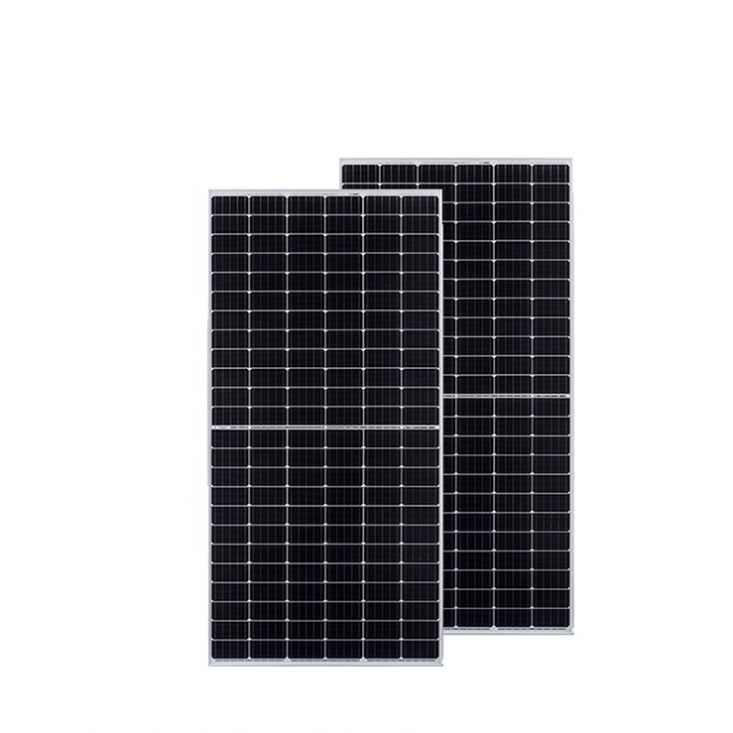

Super Solar Top 1 Factory Mono Solar Panel 355 Watt

Availability:
Quantity:
  • 350W

Product description
Moduel
OULU335P-72
OULU340P-72
OULU345P-72
OULU350P-72
OULU355P-72
Rated Maximum Power at STC
335
340
345
350
355
Open Circuit Voltage(Voc/V)
46.3
46.5
46.7
46.9
47.0
Maximum Power Voltage(Vmp/V)
37.9
38.2
38.4
38.5
38.7
Short Circuit Current(Isc/A)
8.84
8.90
9.00
9.09
9.17
Maximum Power Current(Imp/A)
9.36
9.45
9.50
9.60
9.69
Module Efficiency(%)
17.3
17.5
17.8
18.0
18.3
Power Tolerance
-0~+5%
Standard Test Condition(STC)
Irradiance 1000W/m2,Cell Temperature 25℃,Air Mass1.5
Number of Cells:
144pcs,120pcs,72pcs.etc
Module Size:
2000*1000*35mm
Weight:
30kg
Glass:
2.5mm thickness coated semi-reinforced glass + 2.5mm thickness semi-reinforced glass
Backplane:
White or black
Box:
IP68 rated
Connector:
MC4 EV02/TS4*

exide solar charge controller2kv solar panel price

Detail shows


QQ图片20211216133713

 Glass

> Antireflective glass
> Translucency of normal luminance is increased by 2%
> Module efficiency is increased by 2%
> Self-cleaning function
> Service life is as long as 25 years (30 years optional)


QQ图片20211216133719


Solar Cell

> High Efficiency PV Cells
> Appearance Consistency
> Color sorting ensure consistent appearance on each module
> Anti-PID


QQ图片20211216133722

      Frame

      > Conventional frame
      > Silver or black frames are optional
      > Boost bearing capability and prolong service life

      > Serrated-clip design tensile strength

      > Seal-lip designglue injection



QQ图片20211216133725

             Junction box

            > Quality diode ensures module running safety
            > IP67 protection level
            > Heat dissipation
            > Long service life


Project

2kv solar panel price

Payment and Shipping






Payment Term
T/T
EXW
30% T/T in advance, the balance paid before shipment
FOB
CFR(C&F)
30% T/T in advance, the balance paid against copy of B/L
CIF
L/C
L/C amount above 50,000 usd, we can accept L/C at sight
Paypal
Amount lower than 5000usd
West Union
Delivery Time
10 working days after receiving payment for one container
Our Advantage

CE
